PSD1001

Quad Channel 15V-20mA Intrinsically Safe Power Supply, SIL 3

Description

The PSD1001 is a quad channel DIN Rail Power Supply to drive measuring, process control equipment in Hazardous Area; it provides isolation between input and output.
Typical application is to drive 4-20 mA 2 wires transmitter with local indication (current is not repeated in Safe Area). Output channels can be paralleled if more power is required.

Features

• Output to Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
• 4 channels Power Supply for Hazardous Area equipment.
• Flexible modular multiple output capability.
• Output short circuit proof and current limited.
• Isolation Input/Output.
• EMC Compatibility to EN61000-6-2, EN61000-6-4.
• High Reliability, SMD components.
• High Density, four channels per unit.
• Simplified installation using standard DIN Rail and plug-in terminal blocks.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.

Supply

24 Vdc nom (21.5 to 30 Vdc)

Channels

1

SIL level

3

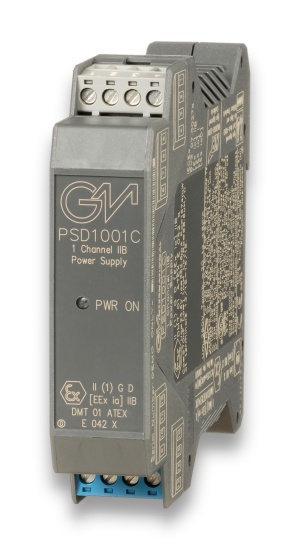

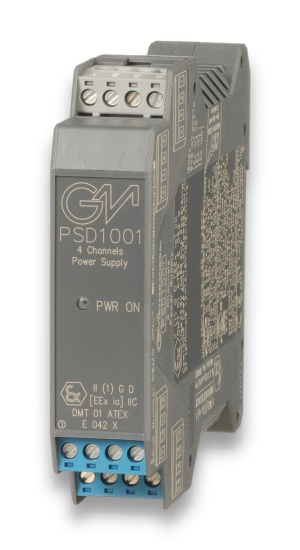

Image of PSD1001 (WEB)

Download

    Datasheet of PSD1001 ( EN )
    Instruction Manual PSD1001 ( EN )
    Instruction Manual for SIL Related Barrier ( EN )
    Instruction Manual D1000 Series ( EN )
    UL Control Drawing PSD1001 ( EN )
    Ex safety instruction manual for D1000 series ( EN )
    PSD1000 Supply for D1000 Series AC Input ( EN )
    Series D1000 Digital Unit Testing ( EN )
    D1053S 4 Channel Level or Pressure Alarm System ( EN )
    ATEX > DEKRA > ATEX D1000 Series Certificate ( EN | DE )
    ATEX > IMQ > IMQ Zone 2 Applications D1000 Series Certificate ( EN )
    EAC_EMC > EAC > D1000 EAC EMC Declaration of Conformity ( RU )
    EAC_EX > TECHNOPROGRESS > EAC Ex Certificate for D1000 Series ( RU )
    HAZARDOUS_LOCATION > FM > FM No.3024643-3029921C Certificate ( EN )
    HAZARDOUS_LOCATION > UL > UL-cUL D1040, D1041, D1042, D1043, PSD1001, PSD1001C Divisions and Zones ( EN )
    IECEX > DEKRA > DEKRA IECEx for D1000 Series ( EN )
    IECEX > IMQ > IMQ IECEx Zone 2 Applications D1000 Series Certificate ( EN )
    INMETRO_EX > DNV-GL > INMETRO Certificate DNV 13.0108 X for D1000 series ( EN )
    MARITIME > KR > KR Maritime Certificate D1000 Series ( EN )
    MARITIME > DNV-GL > DNV Maritime Certificate TAA00002BM for D1000 Series ( EN )
    SIL > EXIDA > EXIDA GM 04/10-26 Analisys for SIL Application D1000 Series ( EN )
    UKRAINE_EX > SERTIS-CENTER > Ukraine Techincal Regulation n. 898 certificate D1000 series ( UK )
    EU Declaration of Conformity D1000 series ( EN )
    EU Declaration of Conformity for D1000 series (zone 2) ( EN )
    EU Declaration of Conformity for RoHS, REACh ( EN )
    Declaration of G3 compliance for D1000_PSD1000-PSD1001-PSD1001C-PSD1004-PSD1220-PSD1220-098 SERIES ( EN )
    Product Overview ( EN | FR | DE | CN | RU | JA )
    D1000 Series Presentation ( RU )
    3D_drawing_D1000_dwg ( EN )
    3D_drawing_D1000_stp ( EN )
