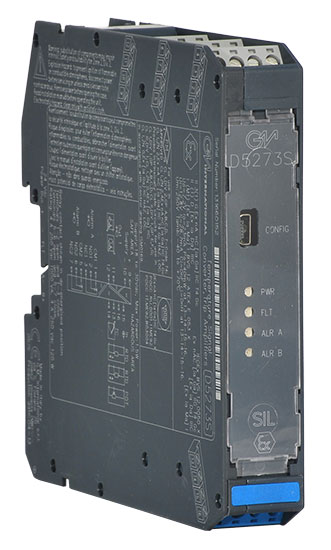

D5273S

SIL 2 Temperature Signal Converter, Multifunction, Trip Amplifiers

Description

The single channel Temperature Signal Converter, Trip amplifiers D5273S accepts a low level dc signal from millivolt, thermocouple or 2-3-4 wire RTD or transmitting potentiometer sensors, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load, suitable for applications requiring SIL 2 level (according to IEC 61511) in safety related systems for high risk industries. Output signal can be direct or reverse. Output function can be configured as: Adder, subtractor, low/high selector. Modbus RTU RS-485 output is available on Bus connector. Cold junction compensation can be programmed as automatic, using an internal temperature sensor or fixed to a user-customizable temperature value.
D5273S offers two independent trip amplifiers via two SPDT output relays.

Mounting on standard DIN-Rail, with or without Power Bus, in Safe Area / Non Hazardous Location or in Zone 2 / Class I, Division 2 or Class I, Zone 2.

Features

• Input from Zone 0 (Zone 20), installation in Zone 2.
• mV, thermocouple, 2 or 3 or 4 wire RTD or transmitting potentiometer Input Signal.
• 2-wire RTD line resistance compensation.
• Internal Reference Junction Compensation automatic or fixed (programmable value).
• Fastest integration time: 50 ms
• 4-20 mA Output Signal temperature linear or reverse.
• Two independent Trip Amplifiers each with SPDT relay contacts 4A 250 Vac 1000VA
• Multiple Fault detection.
• High Accuracy, μP controlled A/D converter.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• Fully programmable operating parameters.
• High Density, one Analog Output + two Alarms.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.

Supply

24 Vdc nom (18 to 30 Vdc)

Channels

1

SIL level

SIL 2
D5273S - SIL 2 Temperature Signal Converter
